13S6P PC ABS Lithium Electric Bike Battery Rear And Tail Frame 36V

13S6P PC ABS Lithium Electric Bike Battery Rear And Tail Frame 36V

Product Details:

Place of Origin: China
Certification: ISO9001,FCC,MSDS,UN38.3,UL, CE, ROHS, etc
Document: Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Price: Negotiable
Packaging Details: Standard Export Carton,Wooden Case ,Pallet etc.
Delivery Time: 7~30 days
Payment Terms: T/T
Supply Ability: 3500 Per Months
Get Best Price Contact Now

Detail Information

Cell Brand: CATL/BYD/Domestic/EVE/SANYO/Samsung/Panasonic,etc. Cell Material: Lithium Iron Phosphate Battery/Ternary/NIMH/NCM,etc
Capacity: 10H/Customized(7AH~13.6AH) Voltage: 36V/Customized(48V/52V)
Weight: About 3Kg Current: 15A
Discharge Cut-off Voltage: 25V Charge Method: CC/CV
Highlight:

PC Lithium Electric Bike Battery

,

ABS Lithium Electric Bike Battery

Product Description

13S6P 36V Rear and Tail Frame PC+ABS Lithium Electric Bike Pack With Over Temperature Protection For Electric City Bike



Quick Details:

  • Flexible packaging, laminated type, lean liquid, good safety

  • The Discharge Port Can be Customized according to your requirements such as Round hole plug, plug T90, Anderson plug, bullet, alligator clip...

  • Powerful production capability and Short Lead Time.

  • Original replacement battery,Perfect match with original battery

  • Most safe LFP battery technology, no cobalt

  • Strong metal shell, waterproof and anti-corrosion, strong and durable

  • High Energy Density ,Each Battery Can be Fully Charging And Discharging

  • Comprehensive security protection:Over current Protection,Short Circuit Protection ,Over Temperature Protection

    Industrial grade high performance lithium battery

  • Low Internal Resistance,High Performance



​Application:Electric  Bike/Electric Scooter/Electric Two Wheels Vehicles/Electric Three Wheels Vehicles/E-Bike/E-Scooter/Electric Motorcycle

Electric Folding Bike/Golf Cars/Electric Wheeled Chairs



How to buy the right electric vehicle battery:

1.Please confirm the voltage and capacity of the electrified equipment
2.Please confirm the motor power value
3.Battery size, optional factory fixed size or customized size











Specification 36V10.4Ah
Cells 18650
Charge Connector DC2.1
Fuse Holder 15a
Discharge Connector4 4PIN
Lock Mechanical lock
Shell material Die-casting aluminum / PC+ABS
Working Temperature charging:10~45℃
discharge:-20~60℃
Weight 3KG
Voltage 36V
Rated capacity 10.4Ah
Configuration 10S4P/10S5P/10S6P/13S3P/13S4P/13S5P/13S6P
Maximum charging current 3Ah
Maximum continuous working current 15A (Could be customized)
Maximum Discharge Current 30A (Could be customized)
Discharge cut-off voltage 25V
Cycles life More than 800 times
Case Material PC+ABS
Power 350W-750W
Over-charged Protection Voltage 4.25±0.025V/Cell(adjustable)
Over -discharged Protection Voltage 2.50±0.10V/Cell(adjustable)
Battery BMS Function: Over-charge, Over-discharge, Over-current, Temperature protection, Cell balancing,
Secondary protection.
Battery Charging Time(Hrs): 3~4 Hours (Fast)
6~7 Hours (Standard)

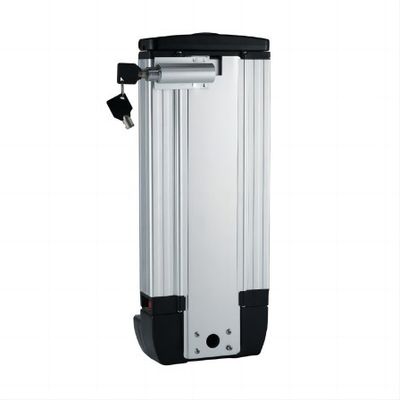

13S6P PC ABS Lithium Electric Bike Battery Rear And Tail Frame 36V 0

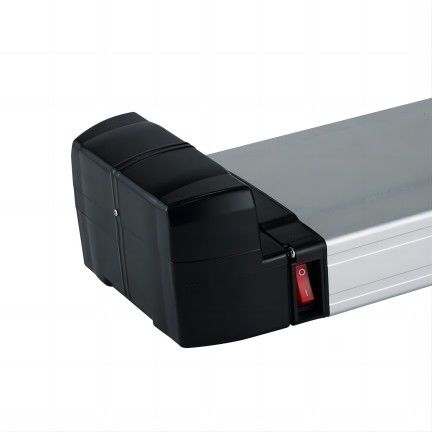

13S6P PC ABS Lithium Electric Bike Battery Rear And Tail Frame 36V 1





13S6P PC ABS Lithium Electric Bike Battery Rear And Tail Frame 36V 2



13S6P PC ABS Lithium Electric Bike Battery Rear And Tail Frame 36V 3





13S6P PC ABS Lithium Electric Bike Battery Rear And Tail Frame 36V 4







13S6P PC ABS Lithium Electric Bike Battery Rear And Tail Frame 36V 5





13S6P PC ABS Lithium Electric Bike Battery Rear And Tail Frame 36V 6





What can we offer?

1.Competitive price: factory price, we can give you more discount if order quantity is good.

2. Technical support : we have 20 person R&D team, can help you solve any technical problems and provide customized battery solutions according to your needs.

3. Quality Assurance:we have our own testing lab, all the batteries have 100% QC inspection before delivery, and we can provide testing reports for you.

4. After-sale service: we have excellent after-sale service team, if you have any question about this product,plus feel free to contact us, we'll reply you within 12 hours.

5. Customized battery solutions based on customer's needs, accept OEM/ODM orders.





Packing Details:

Strong and protective package way will protect each battery well.

Base on different transportation way, the battery package will be customized.

Different transportation way will be selected according to customers' requirements.





Logistic Time:



- Material Preparation Time: 7-15 days (or inventory)



- Production & Assembly Time 3-10 days



- Testing & Packaging Time: 2-10 days



- Total Delivery Time: 30-45days



- The faster delivery could be negotiable.





FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 1 years warranty. Enable to prolong.
