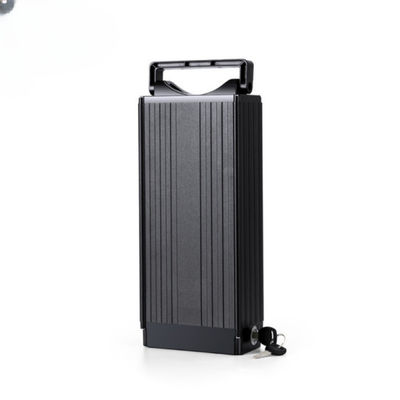

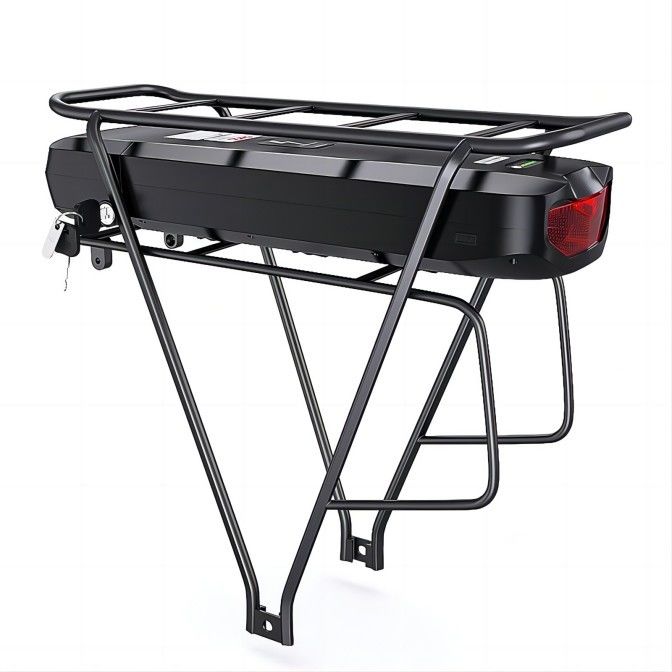

10S4P 36V/48V Lithium Electric Bike Battery Black Rear Hanger Tail Series 10.4AH
Product Details:
| Place of Origin: | China |
| Certification: | MSDS, FCC,UL, CE, ROHS, etc |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Carton,Wooden Case ,Pallet etc. |
| Delivery Time: | 7~30 days |
| Payment Terms: | T/T |
| Supply Ability: | 3500 Per Months |
|
Detail Information |
|||
| Cell Brand: | CATL/BYD/Domestic/EVE/SANYO/Samsung/Panasonic,etc. | Cell Material: | Lithium Iron Phosphate Battery/Ternary/NIMH/NCM,etc |
|---|---|---|---|
| Capacity: | 10.4H/Customized(7AH~13.6AH) | Voltage: | 36V/Customized 48V |
| Minimum Capacity: | 7.5Ah | OEM/ODM: | Acceptable |
| Maximum Number Of Cells: | 40 Pieces | Charge Cut-off Voltage: | 42V |
| High Light: | 36V Lithium Electric Bike Battery,Lithium Electric Bike Battery 10.4AH |
||
Product Description
10S4P Black Rear Hanger Tail Series No Memory Effect 36V/48V 10.4AH Matt Black Electric Bike For Electric Tricycle
Quick Details:
-
The shell uses ABS+PC, which is stronger and more environmentally friendly
-
Steady performance at different temperatures
-
Perfect Match With Original Product
-
The Discharge Port Can be Customized according to your requirements such as Round hole plug, plug T90, Anderson plug, bullet, alligator clip...
-
User longer than original
-
Sturdy case,Using Aluminum Case,More Safety
-
Comprehensive security protection:Over current Protection,Short Circuit Protection ,Over Temperature Protection
Industrial grade high performance lithium battery
-
No Fear of Wind and Rain,Waterproof and drop proof
-
The battery itself has its own explosion-proof valve, no explosion, no spontaneous combustion, high temperature resistance, good performance, and overcharge resistance
-
Great Factory Price with Best Quality and After-Selling Service
Application:Electric Bike/Electric Scooter/Electric Two Wheels Vehicles/Electric Three Wheels Vehicles/E-Bike/E-Scooter/Electric Motorcycle
Electric Folding Bike/Golf Cars/Electric Wheeled Chairs
How to buy the right electric vehicle battery:
1.Please confirm the voltage and capacity of the electrified equipment
2.Please confirm the motor power value
3.Battery size, optional factory fixed size or customized size
| Specification | 36V- 48V 7Ah-13.6Ah |
| Inner size | 310*102*41mm |
| Cells | 40PCS 18650 or soft-pack battery |
| Electric Qty Display | 36V/48V |
| Onoff Button | KCD1-101 |
| Charge Connector | DC2.1 |
| Fuse Holder | 5a |
| Discharge Connector | FDDZ-4 |
| USB | USB-1 5V |
| Apply to | ALL BIKES |
| content | Testing method |
| Charge cut-off voltage | 42V |
| Discharge cut-off voltage | 27.5V |
| Standard charge | Under the condition of the ambient temperature of 25 ± 2 ℃ , Charge the battery at constant current of 0.2C to reach 36V. Then charge the battery at constant 36V voltage until the charging current decreasing to 0.02C. |
| Standard discharge | After the standard charging , rest for 1 hour then discharge to 27.5V@0.2C. |
| Shipments voltage | 35.8-36.5V |
| Maximum Charge Current | 3A |
| Maximum continuous working current | ≤20A |
| Rated capacity | Typical capacity:7.8Ah or customized |
| Minimum capacity:7.5Ah-5% or customized | |
| Operation temperature range | 10~45℃ |
| -20~60℃ | |
| Storage temperature | ≤1 month: -20 ~ 45℃ |
| ≤3 months: -10 ~ 30℃ | |
| ≤1 year: 0 ~ 30℃ | |
| Impedance | Subject to sample |
What can we offer?
1.Competitive price: factory price, we can give you more discount if order quantity is good.
2. Technical support : we have 20 person R&D team, can help you solve any technical problems and provide customized battery solutions according to your needs.
3. Quality Assurance:we have our own testing lab, all the batteries have 100% QC inspection before delivery, and we can provide testing reports for you.
4. After-sale service: we have excellent after-sale service team, if you have any question about this product,plus feel free to contact us, we'll reply you within 12 hours.
5. Customized battery solutions based on customer's needs, accept OEM/ODM orders.
Packing Details:
Strong and protective package way will protect each battery well.
Base on different transportation way, the battery package will be customized.
Different transportation way will be selected according to customers' requirements.
Logistic Time:
- Material Preparation Time: 7-15 days (or inventory)
- Production & Assembly Time 3-10 days
- Testing & Packaging Time: 2-10 days
- Total Delivery Time: 30-45days
- The faster delivery could be negotiable.
FAQ:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?
A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q3. How to proceed with an order?
A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.
Q4. Is it OK print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Which certificates do you have?
A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.
Q6. How about warranty?
A. 1 years warranty. Enable to prolong.
Welocme to inquiry ,Thank you !!
