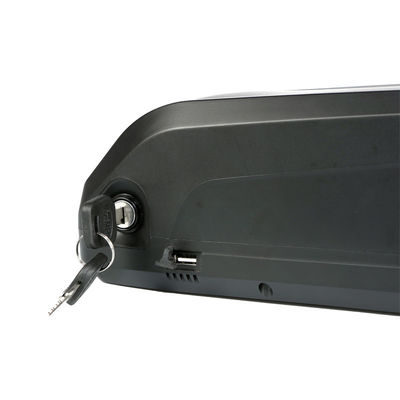

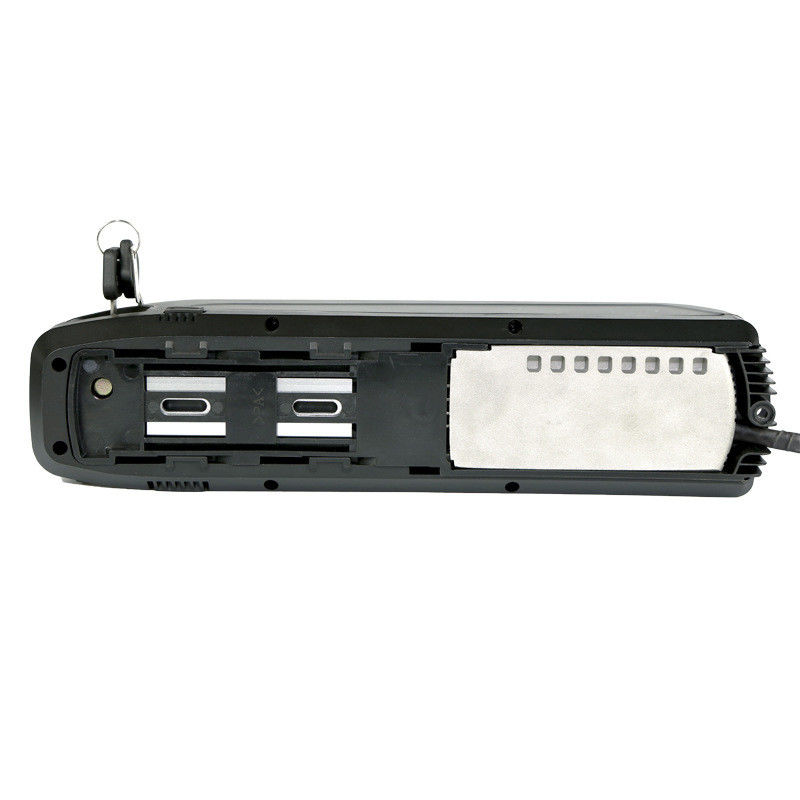

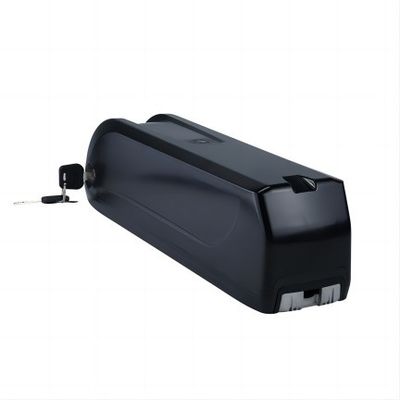

Anti Fall Lithium Electric Bike Battery Rechargeable 48V/52V 15AH With Bluetooth
Product Details:
| Place of Origin: | China |
| Certification: | FCC,ISO14001, UL, CE, ROHS, etc |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Carton,Wooden Case ,Pallet etc. |
| Delivery Time: | 7~30 days |
| Payment Terms: | T/T |
| Supply Ability: | 3500 Per Months |
|
Detail Information |
|||
| Cell Brand: | CATL/BYD/Domestic/EVE/SANYO/Samsung/Panasonic,etc. | Cell Material: | Lithium Iron Phosphate Battery/Ternary/NIMH/NCM,etc |
|---|---|---|---|
| Capacity: | 15AH/Customized(8AH,20AH,30AH,40AH) | Voltage: | 48V/Customized(36V/52V) |
| Discharge Connector: | 5 Pin | Shipments Voltage: | 46.3~47.3V |
| OEM/ODM: | Support | BMS: | Yes |
| High Light: | Anti Fall Lithium Electric Bike Battery,Lithium Electric Bike Battery Rechargeable |
||
Product Description
Deep Cycle Anti-Fall Shell Hai Long Series Bike Battery With Bluetooth Rechargeable 48V/52V 15AH For Electric Scooter
Quick Details:
-
Steady performance at different temperatures
-
Built-in intelligent imported IC protection board, 8 protection functions: equalization function, overvoltage protection, overcharge protection, overdischarge protection, overcurrent protection, short circuit protection, charging protection, charging anti-reverse
-
Detachable charging design, using precision process ABS waterproof sealed shell, dripping water is difficult to enter
-
High temperature and low temperature lithium battery, working temperature: -20 °C ~ 60 °C
-
A variety of discharge socket options can be adapted to a variety of electric vehicles
-
Outstanding Stable discharge characteristics
-
Using Ternary Battery ,Can be Customized Other Cell Material
-
Original replacement battery,Perfect match with original battery
-
Great Factory Price with Best Quality and After-Selling Service
Application:Electric Bike/Electric Scooter/Electric Two Wheels Vehicles/Electric Three Wheels Vehicles/E-Bike/E-Scooter/Electric Motorcycle
Electric Folding Bike/Golf Cars/Electric Wheeled Chairs
How to buy the right electric vehicle battery:
1.Please confirm the voltage and capacity of the electrified equipment
2.Please confirm the motor power value
3.Battery size, optional factory fixed size or customized size
| Specification | |
| Specification | 48V 10Ah-17Ah |
| Cells | 65PCS 18650 or soft-pack battery |
| Electric Qty Display | 48V/36V 4LED |
| Charge Connector | 4PIN |
| Fuse Holder | 6/30A |
| Discharge Connector | 5PIN |
| Lock | yes |
| Shell material | PC+ABS |
| content | Testing method |
| Charge cut-off voltage | 54.6V |
| Discharge cut-off voltage | 35.75V |
| Standard charge | Under the condition of the ambient temperature of 25 ± 2 ℃ , Charge the battery at constant current of 0.2C to reach 54V. Then charge the battery at constant 54.6V voltage until the charging current decreasing to 0.02C. |
| Standard discharge | After the standard charging , rest for 1 hour then discharge to 35.75V@0.2C. |
| Shipments voltage | 46.3-47.3V |
| Maximum Charge Current | 3A |
| Maximum continuous working current | ≤20A |
| Rated capacity | Typical capacity:7.8Ah or customized |
| Minimum capacity:7.5Ah-5% or customized | |
| Operation temperature range | 10~45℃ |
| -20~60℃ | |
| Storage temperature | ≤1 month: -20 ~ 45℃ |
| ≤3 months: -10 ~ 30℃ | |
| ≤1 year: 0 ~ 30℃ | |
| Impedance | Subject to sample |
What can we offer?
1.Competitive price: factory price, we can give you more discount if order quantity is good.
2. Technical support : we have 20 person R&D team, can help you solve any technical problems and provide customized battery solutions according to your needs.
3. Quality Assurance:we have our own testing lab, all the batteries have 100% QC inspection before delivery, and we can provide testing reports for you.
4. After-sale service: we have excellent after-sale service team, if you have any question about this product,plus feel free to contact us, we'll reply you within 12 hours.
5. Customized battery solutions based on customer's needs, accept OEM/ODM orders.
Packing Details:
Strong and protective package way will protect each battery well.
Base on different transportation way, the battery package will be customized.
Different transportation way will be selected according to customers' requirements.
Logistic Time:
- Material Preparation Time: 7-15 days (or inventory)
- Production & Assembly Time 3-10 days
- Testing & Packaging Time: 2-10 days
- Total Delivery Time: 30-45days
- The faster delivery could be negotiable.
FAQ:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?
A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q3. How to proceed with an order?
A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.
Q4. Is it OK print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Which certificates do you have?
A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.
Q6. How about warranty?
A. 1 years warranty. Enable to prolong.
Welocme to inquiry ,Thank you !!
