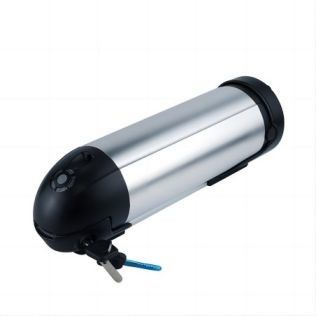

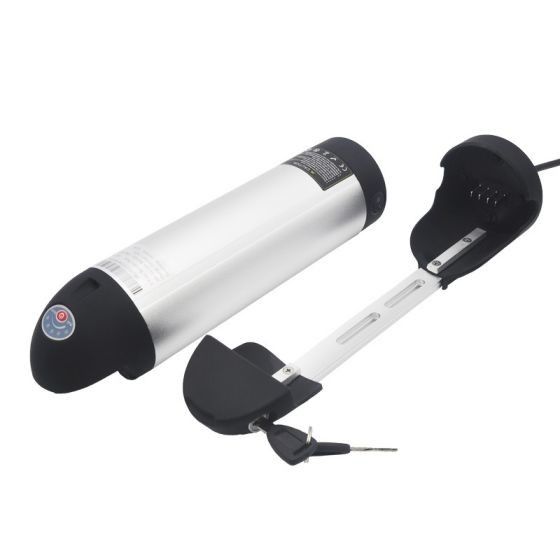

Deep Cycle Water Bottle Series Redar 36V 10AH 18650 Lithium Electric Bike Battery With PC+ABS Case For Electric Scooter
Product Details:
Place of Origin: | China |
Certification: | MSDS, UL, CE, ROHS, etc |
Document: | Product Brochure PDF |
Payment & Shipping Terms:
Minimum Order Quantity: | 100PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Carton,Wooden Case ,Pallet etc. |
Delivery Time: | 7~30 days |
Payment Terms: | T/T |
Supply Ability: | 3500 Per Months |
Detail Information |
|||
Cell Brand: | CATL/BYD/Domestic/EVE/SANYO/Sumsung/Panasonic,etc. | Cell Material: | Lithium Iron Phosphate Battery/Ternary/NIMH/NCM,etc |
---|---|---|---|
Capacity: | 10AH/Customized(7AH,20AH,30AH,50AH) | Voltage: | 36V/Customized(24V/36V/52V) |
Discharge Cut-off Voltage: | 30V | Continuous Discharge Current: | 7A |
Connection Method: | 10S4P | Weight: | About 4kg |
Product Description
Deep Cycle Water Bottle Series Redar 36V 10AH 18650 Lithium Electric Bike Battery With PC+ABS Case For Electric Scooter
Quick Details:
-
Great Factory Price with Best Quality and After-Selling Service
-
Extended operating temperature-20℃~60℃
-
Perfect Match With Original Product
-
The Discharge Port Can be Customized according to your requirements such as XT60,XT90,Anderson.Jr..
-
Bluetooth APP available on request to see the status of the battery .
-
The battery itself has its own explosion-proof valve, no explosion, no spontaneous combustion, high temperature resistance, good performance, and overcharge resistance
-
Built-in battery indicator light, check the power consumption anytime, anywhere
-
No Fear of Wind and Rain,Waterproof and drop proof
Application:Electric Bike/Electric Scooter/Electric Two Wheels Vehicles/Electric Three Wheels Vehicles/E-Bike/E-Scooter/Electric Motorcycle
Electric Folding Bike/Golf Cars/Electric Wheeled Chairs
How to buy the right electric vehicle battery:
1.Please confirm the voltage and capacity of the electrified equipment
2.Please confirm the motor power value
3.Battery size, optional factory fixed size or customized size
Specification | |
Item | General Parameter |
Rated Capacity | 10.0Ah |
Minimal Capacity | 8.5Ah |
Nominal Voltage | 36.0V |
Cycle Life | Residual capacity is more than 60% of the rated capacity |
Discharge cut-off voltage | 30.0V |
Charging cut-off voltage | 42.0V |
Assembly method | INR18650EC-2.2AH 10S4P |
Housing material | Aluminium alloy &ABS+PC |
Standard charge | 0.2 C5 constant current (CC) charge to 42.0V,then constant voltage (CC)42.0V charge till charge current decline to ≤0.05 C5 |
Charging Time | About 7h |
Standard discharge | Constant current 0.2C |
Cut-off voltage 30.0V | |
Maximum Charge Current | 4.5A |
Continuous Discharge Current | 7.0A |
Operation Temperature Range | Charge: 0~55℃ |
Discharge: -10~60℃ | |
Storage Temperature Range | Less than 1 year : 0~25℃ |
Less than 3 months:-5~35℃ | |
Approx. Weight | Approx 3.0Kg |
Dimension | Height: Approx 410.0mm |
Diameter: Approx 98.0 mm | |
Short Circuit Protection | Will recover after recharge |
What can we offer?
1.Competitive price: factory price, we can give you more discount if order quantity is good.
2. Technical support : we have 20 person R&D team, can help you solve any technical problems and provide customized battery solutions according to your needs.
3. Quality Assurance:we have our own testing lab, all the batteries have 100% QC inspection before delivery, and we can provide testing reports for you.
4. After-sale service: we have excellent after-sale service team, if you have any question about this product,plus feel free to contact us, we'll reply you within 12 hours.
5. Customized battery solutions based on customer's needs, accept OEM/ODM orders.
Packing Details:
Strong and protective package way will protect each battery well.
Base on different transportation way, the battery package will be customized.
Different transportation way will be selected according to customers' requirements.
Logistic Time:
- Material Preparation Time: 7-15 days (or inventory)
- Production & Assembly Time 3-10 days
- Testing & Packaging Time: 2-10 days
- Total Delivery Time: 30-45days
- The faster delivery could be negotiable.
FAQ:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?
A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q3. How to proceed with an order?
A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.
Q4. Is it OK print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Which certificates do you have?
A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.
Q6. How about warranty?
A. 1 years warranty. Enable to prolong.
Welocme to inquiry ,Thank you !!
