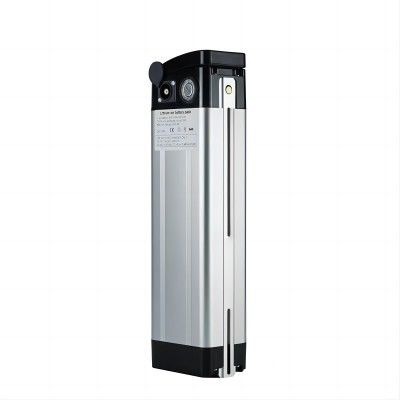

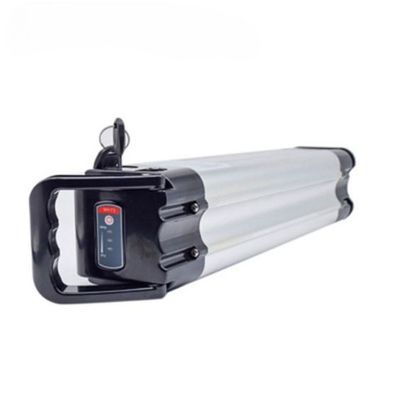

10S6P DC Charging Port 36V 15.6AH/20AH Lithium 21700 Electric Bike Battery Redar For Electric Mountain Bike
Product Details:
| Place of Origin: | China |
| Certification: | UL1642, CE,ROHS,MSDS,etc |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Carton,Wooden Case ,Pallet etc. |
| Delivery Time: | 7~30 days |
| Payment Terms: | T/T |
| Supply Ability: | 3500 Per Months |
|
Detail Information |
|||
| Cell Brand: | CATL/BYD/Domestic/EVE/SANYO/Sumsung/Panasonic,etc. | Cell Material: | Lithium Iron Phosphate Battery/Ternary/NIMH/NCM,etc |
|---|---|---|---|
| Capacity: | 15.6AH/Customized | Discharge Connector: | 3pin |
| Voltage: | 36V/Customized | Charging Port: | DC/Lotus Head/Canon Head/Customized |
| Maximum Continuous Working Current: | ≤20A | Charge Cut-off Voltage: | 42V |
Product Description
10S6P DC Charging Port 36V 15.6AH/20AH Lithium 21700 Electric Bike Battery Redar For Electric Mountain Bike
Features:
-
Using Grade A Ternary Battery ,More Powerful and More Safety
-
Built-in smart chip, multiple protection
-
The battery with outer shell and lock
-
Strong metal shell, waterproof and anti-corrosion, strong and durable
-
Easily replacement the original lead acid battery .
-
The Dishcharge Port Can be Customized according to your requirements such as XT60,XT90,Anderson.Jr..
-
Outstanding Stable discharge characteristics.
-
Easily Installation,Maintenance Free
-
Powerful production capablicity and Short Lead Time.
Application:Electric Bike/Electric Scooter/Electric Two Wheels Vehicles/Electric Three Wheels Vehicles/E-Bike/E-Scooter/Electric Motorcycle
Electric Two Wheels Vehicles
How to buy the right electric vehicle battery:
1.Please confirm the voltage and capacity of the electrified equipment
2.Please confirm the motor power value
3.Battery size, optional factory fixed size or customized size
OEM/ODM service: If you want shells of different colors, different materials, different batteries, and have different requirements for application scenarios, please spare no effort to tell us, and we will provide you with more considerate services
| Specification | |
| Specification | 36V 15.6Ah |
| Cells | 60PCS 18650 or soft-pack battery |
| Electric Qty Display | 36V |
| Charge Connector | 3pin |
| Fuse Holder | 15a |
| Discharge Connector | 3PIN |
| Connection Type | 10s6p |
| Each Cell Cpacity | 2600mAh |
| content | Testing method |
| Charge cut-off voltage | 42V |
| Discharge cut-off voltage | 27.5V |
| Standard charge | Under the condition of the ambient temperature of 25 ± 2 ℃ , Charge the battery at constant current of 0.2C to reach 36V. Then charge the battery at constant 36V voltage until the charging current decreasing to 0.02C. |
| Standard discharge | After the standard charging , rest for 1 hour then discharge to 27.5V@0.2C. |
| Shipments voltage | 35.8-36.5V |
| Maximum Charge Current | 3A |
| Maximum continuous working current | ≤20A |
| Rated capacity | Typical capacity:7.8Ah or customized |
| Minimum capacity:7.5Ah-5% or customized | |
| Operation temperature range | 10~45℃ |
| -20~60℃ | |
| Storage temperature | ≤1 month: -20 ~ 45℃ |
| ≤3 months: -10 ~ 30℃ | |
| ≤1 year: 0 ~ 30℃ | |
| Impedance | Subject to sample |
What can we offer?
1.Competitive price: factory price, we can give you more discount if order quantity is good.
2. Technical support : we have 20 person R&D team, can help you solve any technical problems and provide customized battery solutions according to your needs.
3. Quality Assurance:we have our own testing lab, all the batteries have 100% QC inspection before delivery, and we can provide testing reports for you.
4. After-sale service: we have excellent after-sale service team, if you have any question about this product,plus feel free to contact us, we'll reply you within 12 hours.
5. Customized battery solutions based on customer's needs, accept OEM/ODM orders.
Logistic Time:
- Material Preparation Time: 7-15 days (or inventory)
- Production & Assembly Time 3-10 days
- Testing & Packaging Time: 2-10 days
- Total Delivery Time: 30-45days
- The faster delivery could be negotiable.
FAQ:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?
A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q3. How to proceed with an order?
A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.
Q4. Is it OK print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Which certificates do you have?
A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.
Q6. How about warranty?
A. 1 years warranty. Enable to prolong.
Welocme to inquiry ,Thank you !!
