Product Details:

Place of Origin: China
Brand Name: YS
Certification: ISO9001,UN38.3,UL, CE, ROHS, etc
Model Number: Stackable S series
Document: Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Standard Export Carton,Wooden Case ,Pallet etc.
Delivery Time: 7-10 days for sample , 20-25days for bulk order
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3500 Per Months
Get Best Price Contact Now

Detail Information

Battery Material: Lithium Iron Phosphate Battery/Ternary/NIMH/NCM,etc WIFI: YES
Cycle Time: ≧4000 Times(100%DOD) Frequency: 50HZ~60HZ
Battery Shell: Sheet Metal Each Model Voltage: 51.2V/Customized
Working Temperature: -20℃~60℃ Inverter Powr: 10KW/Customized
Inverter Warranty: 2 Years Each Model Capacity: 100AH/Customized
Highlight:

Stackable Solar Panel Inverter

,

Solar Panel Inverter 20.48KWH

,

Solar Panel Inverter With LFP Batter

Product Description

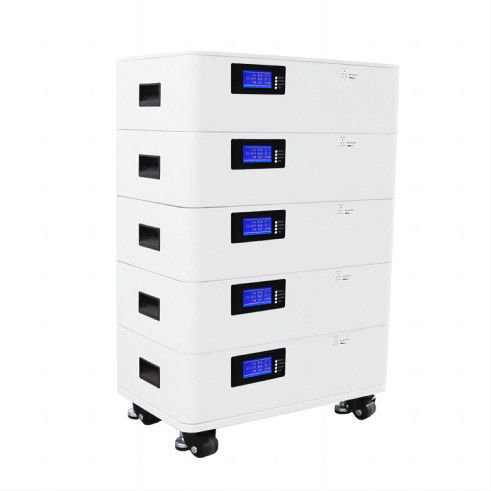

High Output Power Stackable 20.48KWH LFP Battery With CE/UL Approved solar panel inverter for home



Features:

  • A single battery module is individually equipped with a WIFI connector and can be monitored in real time by a mobile phone. It can accurately collect information such as voltage, current, humidity, etc. of a single battery to facilitate expansion and maintenance.
  • Enviromental Friendly ,No Toxic
  • Service life of more than 5000 cycles
  • Bluetooth APP available on request to see the status of the battery .

  • High effciency between charging and discharging

  • Predictable end of life due BMS controller

  • Providing uninterrupted power to users. Can satisfy the requirement of users under the extreme environment, such like the power failure caused by earthquake and flood
  • Low Internal Resistance,No memory effect

  • Great Factory price and After-sales service



Applications:

  • Home solar energy storage system, hospital, school, office space...
  • Solar/wind energy storage system
  • UPS, backup power
  • Telecommunication
  • Lighting...





Advance Energy OEM Service:
1> Customized battery voltage and capacity,3.2V-72V,3AH-1000AH
2> Customized battery case,plastic case,PVC,metal case
3> Customized BMS
4> Customized logo
5>Customized package
6>Delivery support,we can use your own cooperate forwarder or if you do not have cooperate forwarder,we can use our cooperate forwarder.
Also support drop ship from Advance Energy to end customer.











Specification
Battery Product Name YS SSeries
Rated Power 20.48KWH
Rated Voltage 51.2V
Discharge Voltage Range 44.8V~57.6V
Rated Charging Current 100A@25℃
Max.Charging Current 150A@25℃
Discharge Depth DOD90%
Communication Method RS485/RS232/CAN
Cycle Life More than 5000 Cycle
Working Temperature Charge:0℃~50℃
Discharge:-10℃~55℃
Storage Temperature -15℃~60℃
Warranty 8 Years
Dimension 500*480*994mm
Weight 220.6Kg
Wifi YES
Aerosol fire protection module YES
Solar Inverter Rated Power 10000W
Rated Voltage 230VAC
Max.Charging Current 150A
Frequency 50HZ~60HZ
Switching Time ≤20ms
Waveform Pure Sine Wave
Battery Access Voltage 40~60V
Maximum PV access voltage (open circuit) 500VDC
Maximum PV access power 5500W*2
MPPT Working Voltage Range 90~450VDC
Inverter Warranty 2 years





High Output Power Stackable Solar Panel Inverter 20.48KWH LFP Battery With CE UL Approved For Home   0







High Output Power Stackable Solar Panel Inverter 20.48KWH LFP Battery With CE UL Approved For Home   1







High Output Power Stackable Solar Panel Inverter 20.48KWH LFP Battery With CE UL Approved For Home   2











FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 5~10 years warranty.
