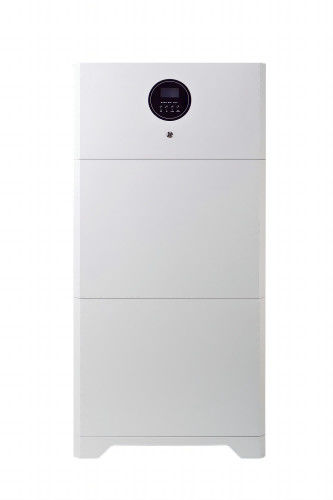

Off Grid Hybrid Solar Inverter All In One Home Solar Energy Storage System 5KWH 10KWH 20KWH 30KWH H 25KWH 35KWH
Product Details:
| Place of Origin: | China |
| Brand Name: | YS L Series |
| Certification: | ISO9001,UN38.3,UL, CE, ROHS, etc |
| Model Number: | Stackable |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Carton,Wooden Case ,Pallet etc. |
| Delivery Time: | 7-10 days for sample , 20-25days for bulk order |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 3500 Per Months |
|
Detail Information |
|||
| Battery Material: | Lithium Iron Phosphate/Customized Ternary ,NIMH,NCM | OEM/ODM: | Support |
|---|---|---|---|
| Each Model Capacity: | 5KWH | DOD: | 90% |
| Warranty: | 5 Years~8 Years | Max.Charging Current: | 100A@25℃ |
| Solar Inverter Power: | 5KW/Customized | Weight: | 58Kg |
| Communication Protocol: | RS485/RS232/CAN | Life Cycle Times: | Above 5000 Cycle |
| Highlight: | Off Grid Hybrid Solar Inverter,Hybrid Solar Inverter 35KWH,20KWH Hybrid Solar Inverter |
||
Product Description
Off Grid Hybrid Solar Inverter All In One Home Solar Energy Storage System 5KWH 10KWH 20KWH 30KWH H 25KWH 35KWH
Key Feature:
- High Energy Density ,Using Industrial Grade A Lithium Ion Battery .
- Easily Use, Quick plug and Maitenance Free
-
Make compensation for PV generating, and smoothen the power outputMake compensation for PV generating, and smoothen the power output
-
Use for urgency transient active power response and voltage supporting
- Can be connected in parallel to get more power
- Deep Cycle and Eco Friendly ,Life Cycle More than 5000 Times
-
Bluetooth APP and Display Screen available on request to see the status of the battery
-
Great Factory Price with Best Quality and After-Selling Service
Application:
-
Off grid power supply for places with lack of electricity or unstable utility, or remote area without access to AC electricity.
-
UPS for typical application required uninterrupted power supply
-
Electric bicycle, Motorbike, balance scooter, golf cart.
Why you choose us ?
1. We can provide OEM service ,custom your logo both on the product and the packing you want !
2. High quality products ,all of the products must passed strict QC before shipping ,0.01% defective rate !
3. Fastest response rate ,save your time and easy your business !
4. Safe payment methods ,Safe business ,we support T/T,western union ,paypal,trade assurance
5. We provide after-sale service,all of our goods have 1-3 year warranty
| Specification | ||
| Battery | Product Name | YS L Series |
| Rated Capacity | 10.24KWH | |
| Rated Voltage | 51.2V | |
| Discharge Voltage Range | 200A | |
| Discharging Voltage Range | 44.8V~57.6V | |
| Rated Charging Current | 50A@25℃ | |
| Max.Charging Current | 100A@25℃ | |
| Discharge Depth | 90% | |
| Communication Method | RS485/RS232/CAN | |
| Cycle Life | More than 5000 Cycle | |
| Working Temperature | Charge:0℃~50℃ | |
| Discharge:-10℃~55℃ | ||
| Storage Temperature | -15℃~60℃ | |
| Warranty | 5 Years | |
| Dimension | 588*196*1238mm | |
| Weight | 105Kg | |
| Wifi | YES | |
| Aerosol fire protection module | YES | |
| Solar Inverter | Rated Power | 5000W |
| Rated Voltage | 230VAC | |
| Max.Charging Current | 100A | |
| Frequency | 50HZ~60HZ | |
| Switching Time | ≤20ms | |
| Waveform | Pure Sine Wave | |
| Battery Access Voltage | 40~60V | |
| Maximum PV access voltage (open circuit) | 500VDC | |
| Maximum PV access power | 5500W | |
| MPPT Working Voltage Range | 120~450VDC | |
| Inverter Warranty | 2 years | |
FAQ
1. Are you a battery manufacturer ?
A: Yes, we are the professional lithium battery manufacturer in Guangdong,China.
2. What products do you make ?
A: We produce high-C rate lifePO4 lithium rechargeable battery for RC model,power battery for electric bike&motorcycle and energy storage battery.
3.Can the battery be customized?
A: Sure and you are supposed to tell us the size, voltage, capacity, application and the quantity.
4. What is the difference between Lithium Ion batteries and Lithium Iron Phosphate batteries?
A: Lithium-ion batteries are rechargeable batteries that use lithium as one of their active components. Lithium Iron Phosphate Batteries are a type of lithium-ion batteries known for their long life and inherent safety.
