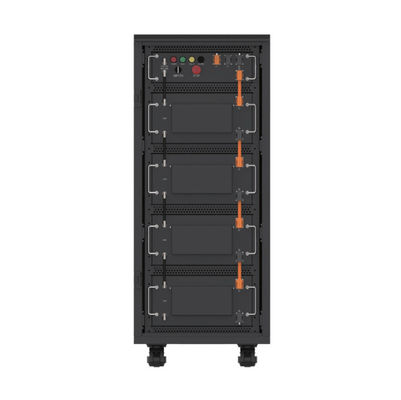

IP40 Server Rack Lithium Iron Phosphate Battery For Commercial Systems
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001, ISO14001, UL, CE, ROHS, etc |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Carton,Wooden Case ,Pallet etc. |
| Delivery Time: | 7~30 days |
| Payment Terms: | T/T |
| Supply Ability: | 3500 Per Months |
|
Detail Information |
|||
| Cell Material: | Lithium Iron Phosphate /Ternary/NIMH/NCM/Coltbat Etc. | Cell Brand: | CATL/BYD/EVE/Sumsung/Panasonic,etc. |
|---|---|---|---|
| Charge Method: | CC/CV | Warranty: | 3~7 Years |
| Voltage: | 614.4V/Customized | Capacity: | 200A(Customized 100A,300A,500A,700A..) |
| ODM/OEM: | Acceptable | IP Grade: | IP40 |
| High Light: | IP40 Lithium Iron Phosphate Battery,Commercial Lithium Iron Phosphate Battery,Server Rack Lithium Iron Phosphate Battery |
||
Product Description
Enviromental Friendly High Capacity 614.4V 200A CATL Lithium Iron Phosphate Battery With BMS For Commercial Systems
Qucik Details:
- High Energy Density,High Discharge Voltage Rate,High Saftery
- Polltuion Free,Pass ROHS/CE/UL/MSDS.
- Easily Installation,Maintenance Free
- Low Internal Resistance,No Memory Effect ,High Performance
- Competitive price with fine quality.
- The service life exceeds the industry standard
- OEM&ODM orders are acceptable.
- BMS&PCM function: Over-charge protection, Over-Discharge protection, Over-current protection, Short Circuit protection, High Temperature protection, Balance Charge/Discharge protection, Communication protocol function, Battery Power indicator.
Application:Hosehold Backup System , Hospital, office space,Solar/wind energy storage system UPS, backup power ,Telecommunication Lighting,RV ,Motorhome,Electric two-wheeled vehicle, three-wheeled vehicle, four-wheeled low-speed vehicle, scooter, golf cart, forklift and so on.
| Product Parameters | |
| Rated voltage | 614.4V |
| Rated Capacity | 200A |
| Working voltage | 480~700V |
| Charge current | 0.5C |
| Discharge current | 0.5C |
| Working temperature | 20℃~50℃ |
| Total battery Series | 192 |
| Number of battery boxes | 12 |
| Battery box size | 440*745*133 |
| Number of high pressure tanks | 1 |
| Cycle Life Time | ≧2500(0.5C Recharge and Discharge ﹠100DOD%@25℃@80%EOL) |
| Cell Type | Lithium Iron Phosphate Battery |
| IP Grade | IP40 |
Delivery Time:
- Material Preparation Time: 7-15 days (or inventory)
- Production & Assembly Time 3-10 days
- Testing & Packaging Time: 2-10 days
- Total Delivery Time: 30-45days
- The faster delivery could be negotiable.
OEM/ODM Service:
If you want to display your own brand logo in products, bags, labels or anywhere. Or you need to develop battery packs according to your product orientation. Our OEM and ODM services are ready to do it.
Welocme to inquiry ,Thank you !!
