Commercial UPS Battery Lithium Ion , 1MWH 500KWH Lithium UPS Power Supply
Product Details:
| Place of Origin: | China |
| Certification: | CE,ROHS UN38.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Carton,Wooden Case ,Pallet etc. |
| Delivery Time: | 7~30 days |
| Payment Terms: | T/T |
| Supply Ability: | 3500 Per Months |
|
Detail Information |
|||
| Rated Capacity: | 1 MWH | OEM/ODM: | Acceptable |
|---|---|---|---|
| Dimension: | 40ft | Single Cell: | 3.2V/6Ah(57600PCS) |
| Battery Box Size: | 625*520*250 | Self Discharge: | 25℃ Per Month≤5% |
| Battery Box: | 38.4V/240Ah(120PCS) | Charge Method: | CC/CV |
| High Light: | Commercial UPS Battery Lithium Ion,1MWH UPS Battery Lithium Ion,500KWH Lithium UPS Power Supply |
||
Product Description

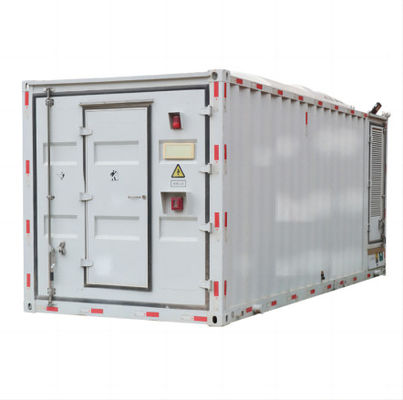

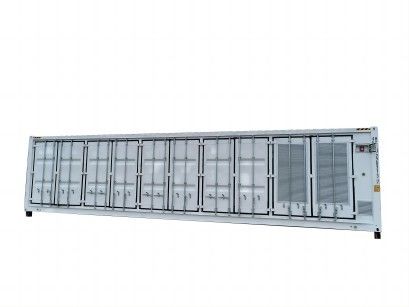

High Power Commercial ESS 1MWH 500KWH On Grid/Off Grid Solar LFP Container Energy Stroage Systems
Brief Introduction:
The whole energy storage system is 500KW/1MWh,the actual battery energy of a single container energy storage system is 500KW/1.105MWh.The system have 6 battery strings(including BMS),1 set 500KW PCS, 1 set EMS ,air conditioner ,fire extinguisher system and other accessory equipments.
Application:UPS,Island micro grid, Power stations with new or distributed energy access; Small fire peak and frequency modulation power station Outdoor temporary heavy duty center, Load fluctuations of the factory, enterprise, business center etc.
| Specification | |
| Single Cell 3.2V/6AH | Quantatiy:57600PCS |
| Weight:145g | |
| Battery Box 38.4V/240ah | Quantatiy:120PCS ,20 pcs battery boxes connecting in series to 1 battery string,totally 6 battery strings |
| Weight:90kg | |
| Host BMS | 7 Set,1 host 20 slave per string |
| Battery cabinet | 6set,size:1.846*0.63*2.388m |
| PCS | 1 Set 500kW |
| Power Distribution Box | 1Set |
| Containe | 1Set:40ft container including fire fighting,air conditioner,lighting and so on. |
| Item | Battery box |
| Rated voltage/capacity | 38.4V240Ah |
| Energy/kWh | 9.216 |
| Depth of discharge(DOD) | 95% |
| Cycle life(0.25C,room | 85%DOD,over 6000 |
| temp) | cycles |
| Storage temp | 25-45℃ is best |
| Self discharge | 25℃,month/≤5% |
| Size(L*W*H)/mm | 625*520*250 |
| Battery box | Battery system |
| Rated voltage/capacity | 768V240Ah |
| Energy/kWh | 184.32 |
| Depth of discharge(DOD) | Over 90% |
| Cycle life(0.25C,room | 85%DOD,over 6000 |
| temp) | cycles |
| Storage temp | 25-45°C is best |
| Self discharge | 25℃,month/≤5% |
| Size(L*W*H)/mm | 1846*630*2388 |
What can we offer?
1.Competitive price: factory price, we can give you more discount if order quntity is good.
2. Technical support : we have 20 person R&D team, can help you solve any technical problems and privde customized battery solutions according to your needs.
3. Quality Assurance:we have our own testing lab, all the batteries have 100% QC inspection before delivery, and we can provide testing reports for you.
4. After-sale service: we have excellent after-sale service team, if you have any question about this product,pls feel free to contact us, we'll reply you within 12 hours.
5. Customized batetry solutions based on customer's needs, accept OEM/ODM orders.
Delivery Methods:
① By express UPS/DHL/FEDEX/TNT (It takes 5~7 days to arrive).
② By airfreight (It takes about 7~10 days to arrive) .
③ By sea shipment (It takes about 30 days to arrive).
Welcome to Inquiry ,Thank you!!
