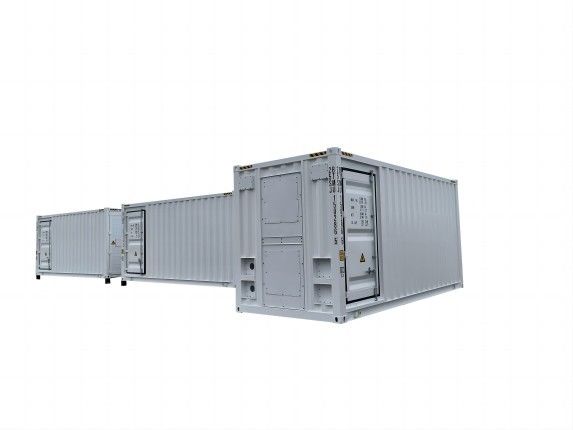

ESS 1MW-4MW UPS Lithium Battery Backup Longer Cycle For Data Center
Product Details:
| Place of Origin: | China |
| Certification: | CE,ROHS UN38.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Carton,Wooden Case ,Pallet etc. |
| Delivery Time: | 7~30 days |
| Payment Terms: | T/T |
| Supply Ability: | 3500 Per Months |
|
Detail Information |
|||
| Rated Capacity: | 1.5MWH | OEM/ODM: | Acceptable |
|---|---|---|---|
| Dimension: | 40ft | Cooling Method: | Forced Air Cooling |
| Wave Form: | Pure Sine Wave | Communication: | Ethernet |
| AC Access: | Three Phase Four Line( Three Phase Three Line) | Rated Power: | 500kW |
| High Light: | 1MW UPS Lithium Battery,4MW UPS Lithium Battery,Data Center Lithium Battery Backup UPS |
||
Product Description
ESS Longer Cycle 1MW~4MW Storage Energy Systems For Off-Grid UPS/Data Center/Energy Storage Station
Quick Details:
-
Three level of BMS to ensure safety
-
Local and remote SCADA monitoring, Automated programs run
-
Independent fire control system, and support fire emergency stop, local system emergency stop, remote emergency stop function
-
Independent air duct design to ensure the temperature consistency of the system
-
Module design, easy to install and maintain
Application:UPS,Island micro grid, Power stations with new or distributed energy access; Small fire peak and frequency modulation power station Outdoor temporary heavy duty center, Load fluctuations of the factory, enterprise, business center etc.
| Parameter | |
| Rated capacity | 1500kWh |
| Rated power | 500kW |
| AC access | Three phase four line( Threephase three line) |
| Reactive range | -0.95 ~ +0.95 adjustable power factor |
| System efficiency | Power efficiency of ≥ 95% |
| energy efficiency of ≥ 85% | |
| Protect grade | IP54 |
| Operating ambient Tem. | -20 ℃～+55 ℃ |
| Noisy | <65 dB |
| Cooling method | Forced air cooling |
| Size | 40 ft |
| Communication | Ethernet |
| Communication Regulation | IEC60870-5-104, Modbus tc |
| On Grid Parameter | |
| Rated grid voltage | AC 380V±15% |
| Rated grid frequency | 50HZ/60HZ |
| The total current distortion | ≤5% |
| Power factor | ≥0.98(Rated power) |
| Off Grid Parameter | |
| Rated output voltage | AC 380V |
| Output voltage deviation | AC380V(AC315V/AC290V)±5% |
| Output voltage unbalance | ≤5 % |
| Output frequency | 50 Hz/60Hz |
| Output voltage distortion | ≤3%(linear load) |
What can we offer?
1.Competitive price: factory price, we can give you more discount if order quntity is good.
2. Technical support : we have 20 person R&D team, can help you solve any technical problems and privde customized battery solutions according to your needs.
3. Quality Assurance:we have our own testing lab, all the batteries have 100% QC inspection before delivery, and we can provide testing reports for you.
4. After-sale service: we have excellent after-sale service team, if you have any question about this product,pls feel free to contact us, we'll reply you within 12 hours.
5. Customized batetry solutions based on customer's needs, accept OEM/ODM orders.
Delivery Methods:
① By express UPS/DHL/FEDEX/TNT (It takes 5~7 days to arrive).
② By airfreight (It takes about 7~10 days to arrive) .
③ By sea shipment (It takes about 30 days to arrive).
Welcome to Inquiry ,Thank you!!
