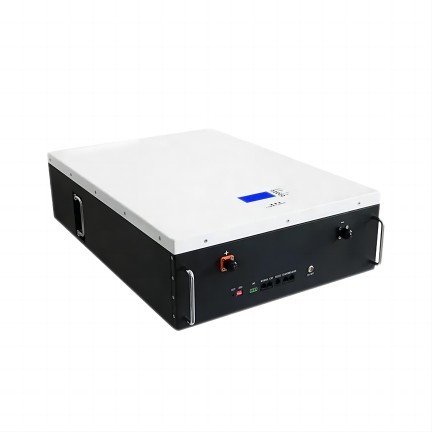

Square BMS Large Capacity Lithium Battery For Telecom Backup System

Square BMS Large Capacity Lithium Battery For Telecom Backup System

Product Details:

Place of Origin: China
Certification: MSDS,UN38.3,UL, CE, ROHS, etc

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Standard Export Carton,Wooden Case ,Pallet etc.
Delivery Time: 7~30 days
Payment Terms: T/T
Supply Ability: 3500 Per Months
Get Best Price Contact Now

Detail Information

Cell Brand: CATL/BYD/Domestic/EVE/SANYO/Sumsung/Panasonic,etc. Voltage: 48V/Customized
Capacity: 100AH/Customized(150A,200A,300A...) Cell Material: Lithium Iron Phosphate Battery/Ternary/NIMH/NCM,etc
Communication Protocol: RS485/CAN/RS232 OEM/ODM: Acceptables
Charging And Discharging Port (joint Or Separate): Joint Port Max.Cont.Discharging Current: 100A
Weight: About 55Kg System Charge Termination Voltage: 57.6V
High Light:

Square Large Capacity Lithium Battery

,

Telecom Large Capacity Lithium Battery

,

BMS Large Capacity Lithium Ion Battery

Product Description

MSDS Approved Light Weight Large Capacity Rechargeable Square CATL Cell Built in BMS For Telecommunication Backup System



Quick Details:

  • Powerful production capablicity and Short Lead Time.

  • Easily Installation,Maintenance Free

  • Strong Production Capacity,Short Lead Time

  • Using High Quailty Lithium Ion Battery ,More Safety

  • The service life exceeds the industry standard

  • Low Internal Resistance,No Mmeory Effect

  • Replacement Battery ,Perfect Macth To Original Machine
  • Data monitoring during the whole life of battery pack
  • Whole process solution:Actively embrace customer needs and improve customer experience with flexible and innovative solutions.
  • BMS&PCM function: Over-charge protection, Over-Discharge protection, Over-current protection, Short Circuit protection, High Temperature protection, Balance Charge/Discharge protection, Communication protocol function, Battery Power indicator.



Application:solar , wind complementary stored energy streetlights, energy storage systems, household energy storage. Power Supply: communication base station power supply, utility power supply, communication industry, emergency power supply and other system standby power etc









Specification
Battery Voltage 48V
Battery Capacity 100A
Cooling Method Natural Cooling
Rated Voltage 51.2 V
Rated Capacity 100A
Rated Power 5120WH
Charging and Discharging Port ( Joint Port
joint or separate)
System Charge Termination Voltage 57.6V
System DisCharge Termination Voltage 43.2V
Cell Charge protection voltage 3.75V
Cell Discharge protection voltage 2.5V
Charging Working Temperature Range 0℃~50℃
Charging Working Temperature Range -20℃~50℃
Max.Cont.Charging Current 50A
Max.Cont.Discharging Current 100A
Cycle Time 1500 Cycle Time at 25℃0.2C Charge and Discharge
Battery Box(W*T*D)mm 370*620*375mm
Weight 55KG
Display Screen LCD





Square BMS Large Capacity Lithium Battery For Telecom Backup System 0

Square BMS Large Capacity Lithium Battery For Telecom Backup System 1









Square BMS Large Capacity Lithium Battery For Telecom Backup System 2





Square BMS Large Capacity Lithium Battery For Telecom Backup System 3





Square BMS Large Capacity Lithium Battery For Telecom Backup System 4













Square BMS Large Capacity Lithium Battery For Telecom Backup System 5









Square BMS Large Capacity Lithium Battery For Telecom Backup System 6





Square BMS Large Capacity Lithium Battery For Telecom Backup System 7





What can we offer?

1.Competitive price: factory price, we can give you more discount if order quantity is good.

2. Technical support : we have 20 person R&D team, can help you solve any technical problems and provide customized battery solutions according to your needs.

3. Quality Assurance:we have our own testing lab, all the batteries have 100% QC inspection before delivery, and we can provide testing reports for you.

4. After-sale service: we have excellent after-sale service team, if you have any question about this product,plus feel free to contact us, we'll reply you within 12 hours.

5. Customized battery solutions based on customer's needs, accept OEM/ODM orders.





Logistic Time:



- Material Preparation Time: 7-15 days (or inventory)



- Production & Assembly Time 3-10 days



- Testing & Packaging Time: 2-10 days



- Total Delivery Time: 30-45days



- The faster delivery could be negotiable.





FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 2 years warranty. Enable to prolong.
