MSDS Lightweight Lithium Ion Battery Deep Cycle with Built in BMS

MSDS Lightweight Lithium Ion Battery Deep Cycle with Built in BMS

Product Details:

Place of Origin: China
Certification: ISO14001, UL, CE, ROHS, etc
Document: Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Standard Export Carton,Wooden Case ,Pallet etc.
Delivery Time: 7~30 days
Payment Terms: T/T
Supply Ability: 3500 Per Months
Get Best Price Contact Now

Detail Information

Cell Brand: CATL/BYD/Domestic/SANYO/Sumsung/Panasonic,etc. Voltage: 51.2V/Customized
Capacity: 100AH/Customized Cell Material: Lithium Iron Phosphate Battery/Ternary/NIMH/NCM,etc
OEM/ODM: Acceptable Max Continous Discharge Current: 100A
Charge Method: CC/CV Weight: 51.85Kg
Charge Voltage Range: 44.0v~58.0V Cell Shape: Square
Highlight:

MSDS Lithium Ion Battery

,

Lightweight Lithium Ion Battery

,

BMS Lithium Ion Deep Cycle

Product Description

Deep Cycle Light Weight MSDS/ROHS Approved CATL Lithium Ion Battery Built in BMS For ESS Solar Energy Storage


Quick Details:

  • Low Internal Resistance, it can be charged at any stage, economically and conveniently
  • High Energy Density ,High Discharge Rate,High Efficiency
  • Lighter Weight,Maintenance Free
  • With best performance in a wide temperature range -20℃-50℃
  • Lithium Iron Phosphate battery is free of Pb, Cd, Hg, Cr6+, PBB and PBDE, it is an environmental friendly chemical power source.​
  • Great capacity and more powerful,rechargeable battery: We can install many single cells in series and in parallet and it can fully discharge.

  • Industrial grade high performance lithium battery

  • ​With a battery display screen, users can easily monitor the battery's status and make informed decisions about when to recharge or replace the battery.

  • Comprehensive security protection:Overcurrent Protection,Short Circuit Protection ,Over Temperature Protection



Application:solar , wind complementary stored energy streetlights, energy storage systems, household energy storage. Power Supply: communication base station power supply, utility power supply, communication industry, emergency power supply and other system standby power etc





Factory Provide:

1.Lithium battery cell manufacturing, with different capacity.

2.Cylindrical Li ion battery cell (18650/ 26650/ 32650,38120, 14500) manufacturing.
3.Battery management system (BMS/PCM) design, production is done in-house.
4.Plastic tooling, injection is done in-house.
5.Battery packing is done in-house.





OEM/ODM Service:

If you want to display your own brand logo in products, bags, labels or anywhere. Or you need to develop battery packs according to your product orientation. Our OEM and ODM services are ready to do it.





Product Parameters
Eletrical characteristics Nominal Volatage 51.2V
Nominal Capacity 100A
Energy Power 5.12kwh
DOD 90%
Cycle life >6000 Cycles @ (80%DOD)
Months Self Discharge ≤3% per month at 25℃
Standard Charge Charge Voltage Range 44.0v~58.0V
Charge Mode(CC/CV) Constant current and constant voltage charging
Rated Charge Current 50A
Max.Charge Curret 100A
Standard Discharge Discharge Current 50A
Max Continous Discharge Current 100A
Enviromental Charge Temperature 0°C ~45°C
Discharge Temperature Minus 20°C ~ 50°C
Water Dust Resistance IP20/Indoor application
Mechanical Cell Shape Square
Plastic Case Sheet Metal
Dimension(H*W*T) H650*W408*T160mm
Weight 51.85Kg
Communication Protocol Pylon/Deye/MUST/Growatt/Megarevo
Warranty 5~8Years
HMI LCD/Blue light
Cell Welding Method Laser

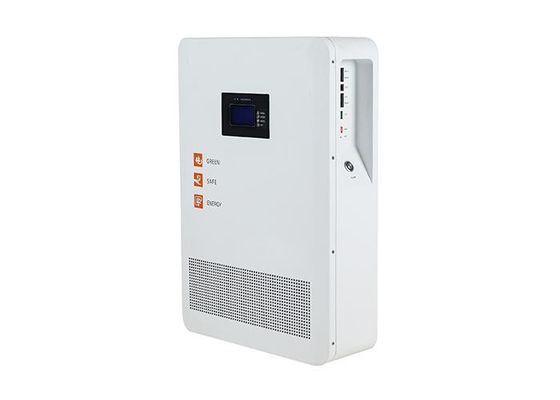

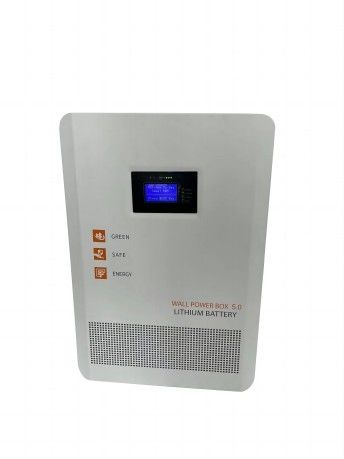

MSDS Lightweight Lithium Ion Battery Deep Cycle with Built in BMS 0



MSDS Lightweight Lithium Ion Battery Deep Cycle with Built in BMS 1















MSDS Lightweight Lithium Ion Battery Deep Cycle with Built in BMS 2





MSDS Lightweight Lithium Ion Battery Deep Cycle with Built in BMS 3













MSDS Lightweight Lithium Ion Battery Deep Cycle with Built in BMS 4









MSDS Lightweight Lithium Ion Battery Deep Cycle with Built in BMS 5





MSDS Lightweight Lithium Ion Battery Deep Cycle with Built in BMS 6





What can we offer?

1.Competitive price: factory price, we can give you more discount if order quantity is good.

2. Technical support : we have 20 person R&D team, can help you solve any technical problems and provide customized battery solutions according to your needs.

3. Quality Assurance:we have our own testing lab, all the batteries have 100% QC inspection before delivery, and we can provide testing reports for you.

4. After-sale service: we have excellent after-sale service team, if you have any question about this product,plus feel free to contact us, we'll reply you within 12 hours.

5. Customized battery solutions based on customer's needs, accept OEM/ODM orders.





Logistic Time:



- Material Preparation Time: 7-15 days (or inventory)



- Production & Assembly Time 3-10 days



- Testing & Packaging Time: 2-10 days



- Total Delivery Time: 30-45days



- The faster delivery could be negotiable.





FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 2 years warranty. Enable to prolong.
